KONET 안테나 제품 리스트
KONET 안테나 제품 리스트
TX : 13.70 ~ 14.50GHz
RX : 10.70 ~ 12.75GHz
Linear : ≥ 49.50dBW@0°@14.10GHz
Circular : ≥ 47.00dBW@0°@14.10GHz
G/T(typical) : ≥ 12.10dB/K@0°@11.70GHz@80K
크기 : 980 x 602 x 70mm
36.58 x 23.70 x 2.76inch
무게 : ≤ 25.00kg(55.12lbs)
Rated Voltage : 24V(19V ~ 31V)

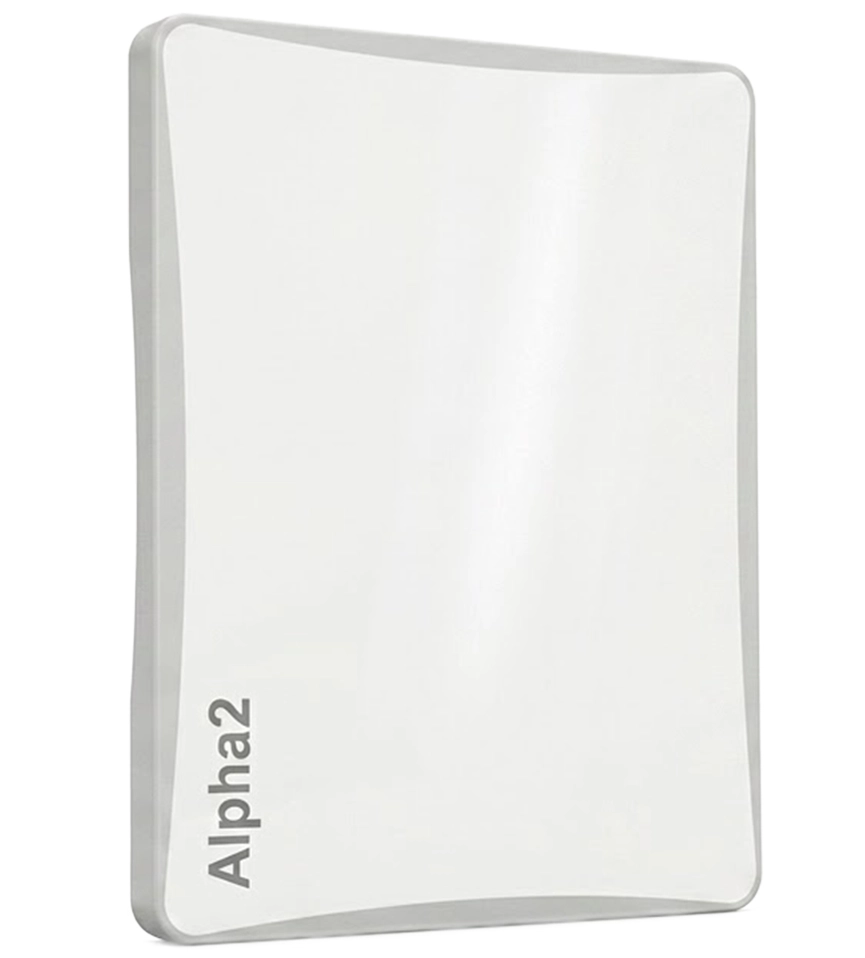

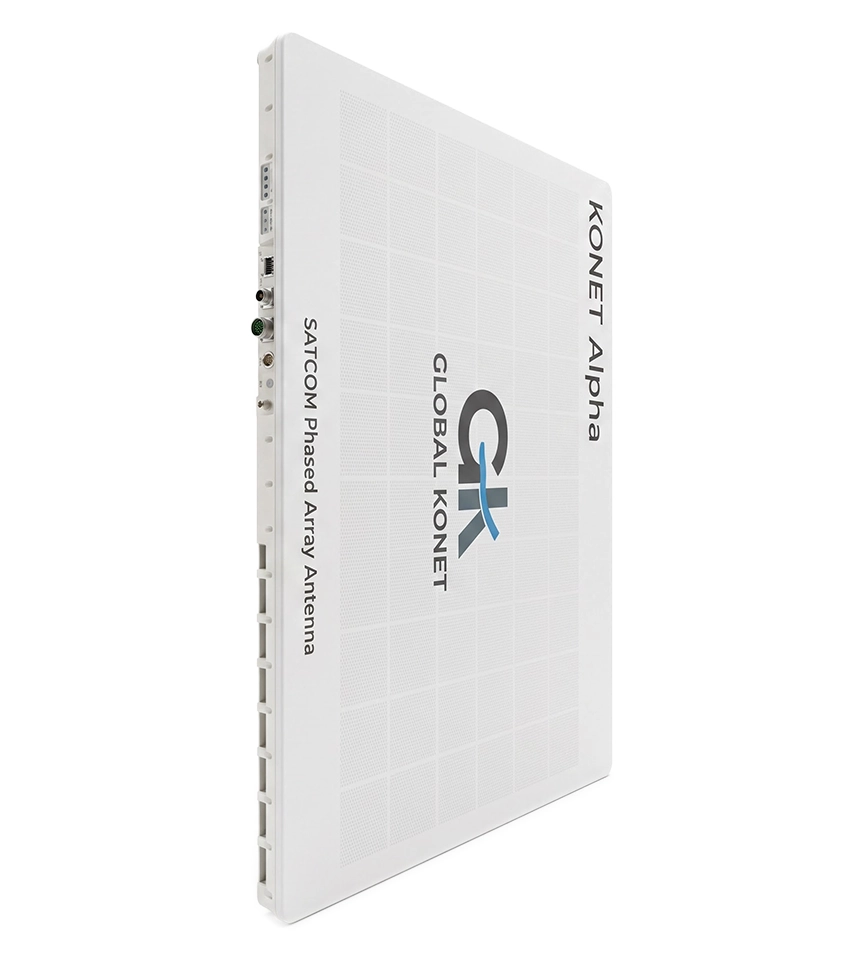

Konet Alpha2 (GU420)TX : 13.70 ~ 14.50GHz
RX : 10.70 ~ 12.75GHz
Linear : ≥ 49.50dBW@0°@14.10GHz
Circular : ≥ 47.00dBW@0°@14.10GHz
G/T(typical) : ≥ 12.10dB/K@0°@11.70GHz@80K
크기 : 980 x 602 x 70mm
36.58 x 23.70 x 2.76inch
무게 : ≤ 25.00kg(55.12lbs)
Rated Voltage : 24V(19V ~ 31V)
TX : 13.70 ~ 14.50GHz
RX : 10.70 ~ 12.75GHz
Linear : 49.50 ≥ dBW@0°@14.10GHz
Circular : 47.00 ≥ dBW@0°@14.10GHz
G/T(typical) : ≥ 15.00dB/K@0°@11.70GHz@80K
크기 : 980 x 940 x 77mm
38.58 x 37.01 x 3.03inch
무게 : ≤ 32.80kg(77.24lbs)
Rated Voltage : 24V(19V ~ 31V)

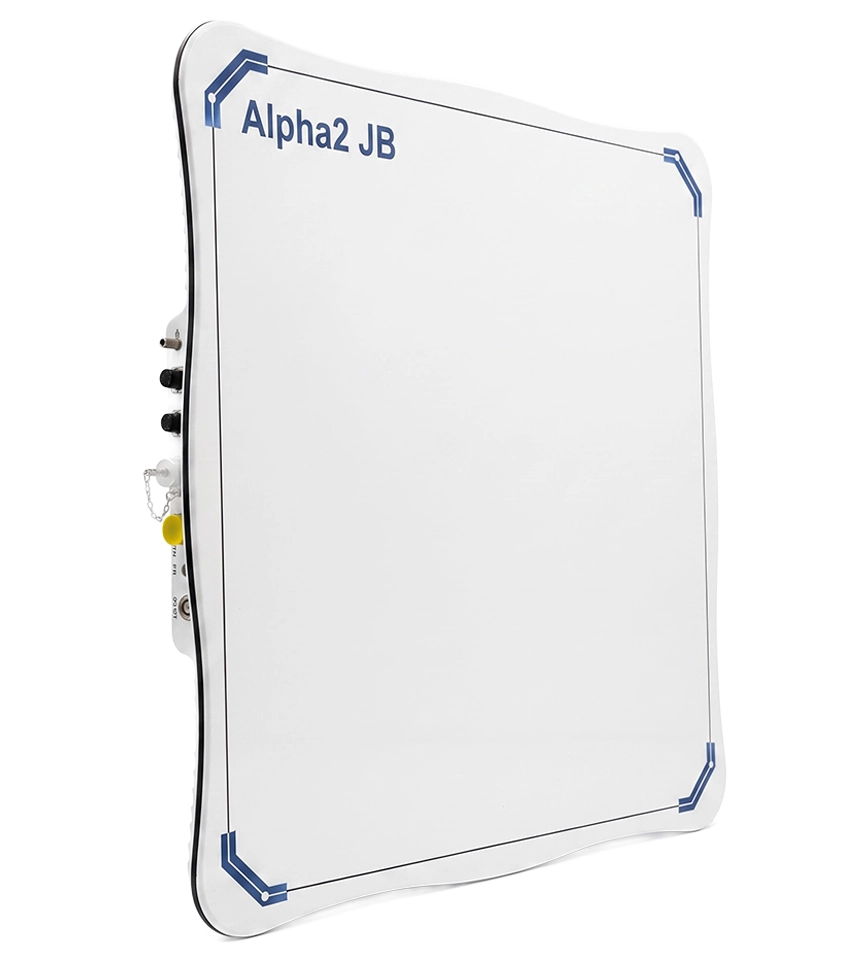

Konet Alpha2 Jumbo (GU440)TX : 13.70 ~ 14.50GHz
RX : 10.70 ~ 12.75GHz
Linear : 49.50 ≥ dBW@0°@14.10GHz
Circular : 47.00 ≥ dBW@0°@14.10GHz
G/T(typical) : ≥ 15.00dB/K@0°@11.70GHz@80K
크기 : 980 x 940 x 77mm
38.58 x 37.01 x 3.03inch
무게 : ≤ 32.80kg(77.24lbs)
Rated Voltage : 24V(19V ~ 31V)
TX : 13.70 ~ 14.50GHz
RX : 10.70 ~ 12.75GHz
Linear : ≥ 44.20dBW@0°@14.10GHz
Circular : ≥ 42.00dBW@0°10@14.10@GHz
G/T(typical) : ≥10.10dB/K@0°@11.70GHz@80K
크기 : 613 x 500 x 77mm
24.14 x 19.69 x 3.03inch
무게 : ≤ 11.00kg(24.25lbs)
Rated Voltage : 24V(19V ~ 31V)

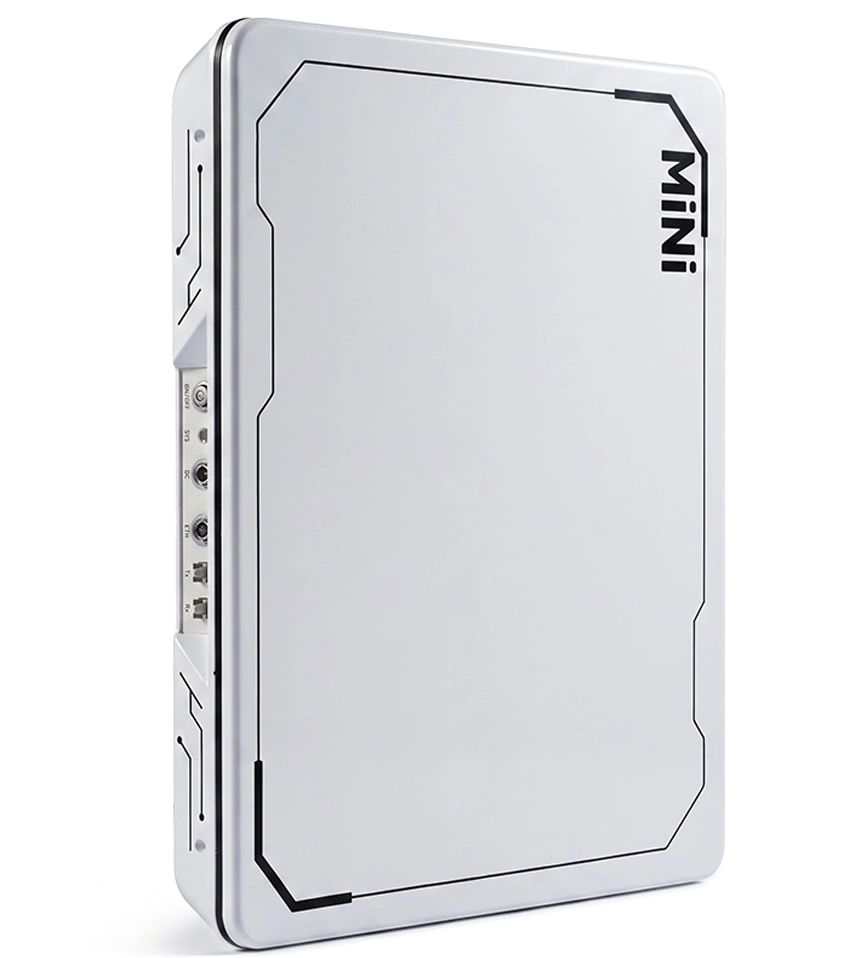

Konet Mini (GU320)TX : 13.70 ~ 14.50GHz
RX : 10.70 ~ 12.75GHz
Linear : ≥ 44.20dBW@0°@14.10GHz
Circular : ≥ 42.00dBW@0°10@14.10@GHz
G/T(typical) : ≥10.10dB/K@0°@11.70GHz@80K
크기 : 613 x 500 x 77mm
24.14 x 19.69 x 3.03inch
무게 : ≤ 11.00kg(24.25lbs)
Rated Voltage : 24V(19V ~ 31V)
TX : 13.70 ~ 14.50GHz
RX : 10.70 ~ 12.75GHz
Linear : ≥ 44.20dBW@0°@14.10GHz
Circular : ≥ 42.00dBW@0°10@14.10GHz
G/T(typical) : ≥ 10.10dB/K@0°@11.70GHz@80K
크기 : 431 x 510 x 100mm
16.97 x 20.08 x 3. 94inch
무게 : ≤ 15.00kg(33.07lbs)
Rated Voltage : 24V(19V ~ 31V)

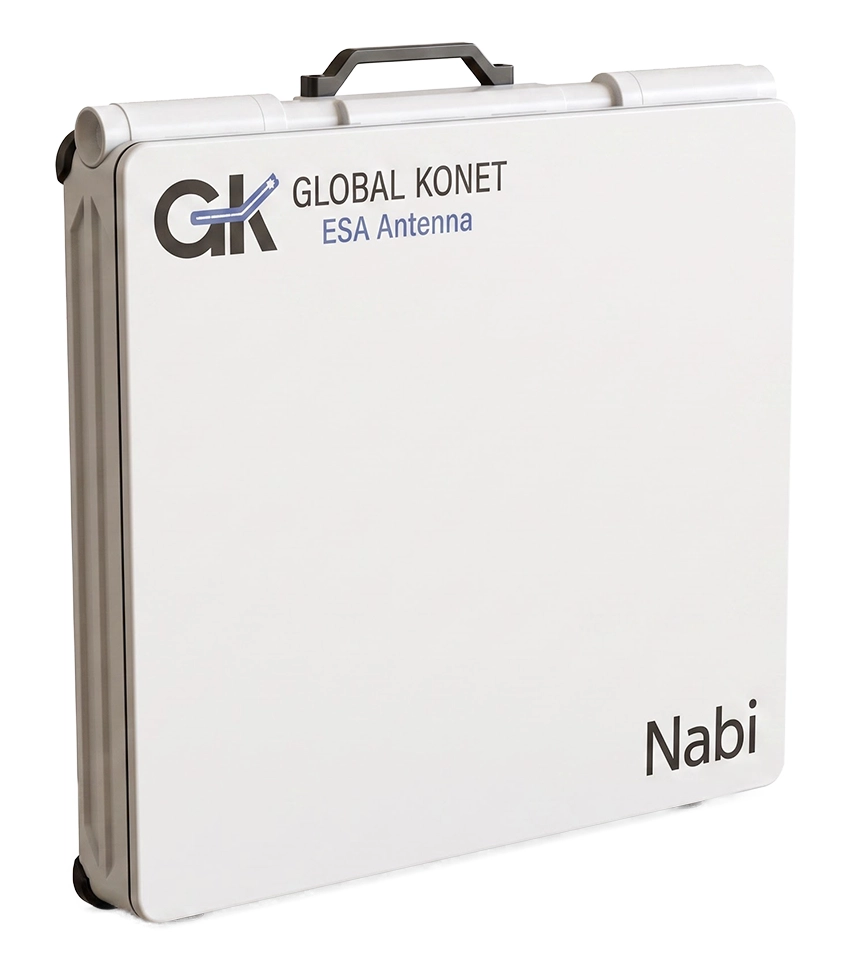

Konet Nabi (GU330)TX : 13.70 ~ 14.50GHz
RX : 10.70 ~ 12.75GHz
Linear : ≥ 44.20dBW@0°@14.10GHz
Circular : ≥ 42.00dBW@0°10@14.10GHz
G/T(typical) : ≥ 10.10dB/K@0°@11.70GHz@80K
크기 : 431 x 510 x 100mm
16.97 x 20.08 x 3. 94inch
무게 : ≤ 15.00kg(33.07lbs)
Rated Voltage : 24V(19V ~ 31V)
TX : 27.50 ~ 31.00GHz
RX : 17.70 ~21.20GHz
Linear : ≥ 54.00dBW@0°@29.00GHz
Circular : ≥ 52.00dBW@0°@29.00GHz
G/T(typical) : ≥ 10.00dB/K@0°19.00GHz@80K
크기 : 431 × 510 × 100 mm
16.97 x 20.08 x 3.94inch
무게 : ≤ 16.00kg(35.27lbs)
Rated Voltage : 24V(19V ~ 31V)
Konet Nova (GA332)TX : 27.50 ~ 31.00GHz
RX : 17.70 ~21.20GHz
Linear : ≥ 54.00dBW@0°@29.00GHz
Circular : ≥ 52.00dBW@0°@29.00GHz
G/T(typical) : ≥ 10.00dB/K@0°19.00GHz@80K
크기 : 431 × 510 × 100 mm
16.97 x 20.08 x 3.94inch
무게 : ≤ 16.00kg(35.27lbs)
Rated Voltage : 24V(19V ~ 31V)
TX : 27.50~ 31.00GHz
RX : 17.70 ~21.20GHz
Linear : ≥ 56.50dBW@0°@29.00GHz
Circular : ≥ 54.30dBW @0°@29.00GHz
G/T(typical) : ≥ 13.20dB/K@0°@19.00GHz@80K
크기 : 1000 x 700 x 75mm
39.37 x 27.56 x 2.95inch
무게 : ≤ 30.00kg(66.14lbs)
Rated Voltage : 24V(19V ~ 31V)

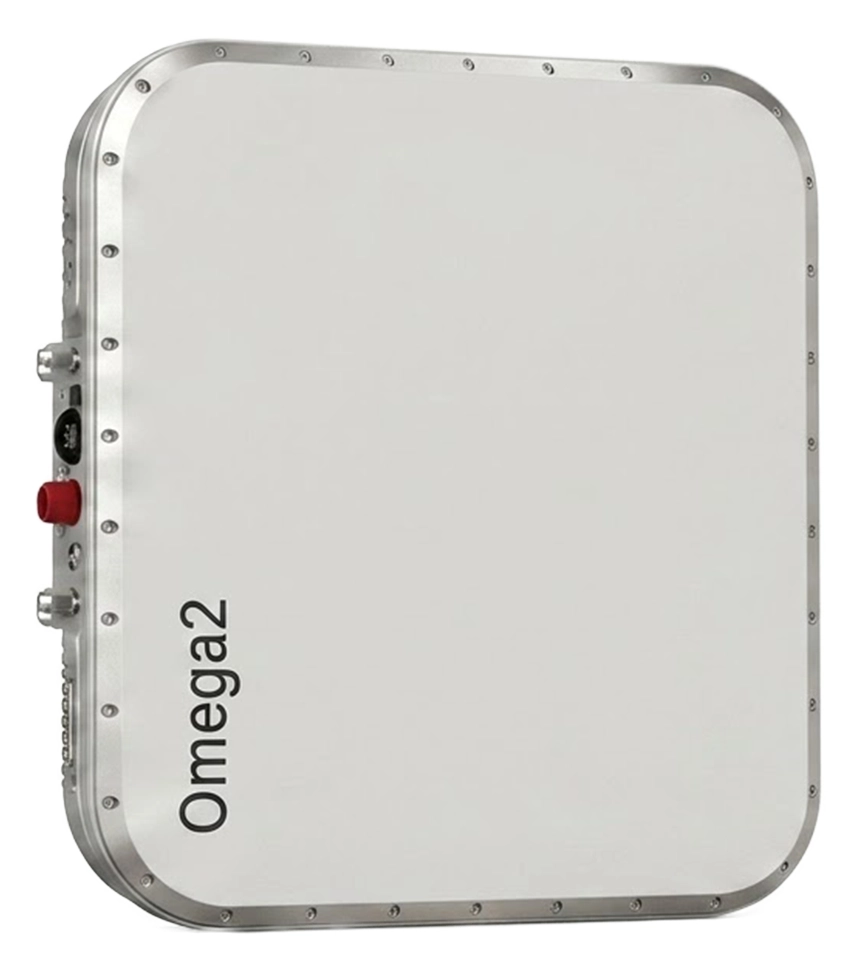

Konet Omega2 (GA450)TX : 27.50~ 31.00GHz
RX : 17.70 ~21.20GHz
Linear : ≥ 56.50dBW@0°@29.00GHz
Circular : ≥ 54.30dBW @0°@29.00GHz
G/T(typical) : ≥ 13.20dB/K@0°@19.00GHz@80K
크기 : 1000 x 700 x 75mm
39.37 x 27.56 x 2.95inch
무게 : ≤ 30.00kg(66.14lbs)
Rated Voltage : 24V(19V ~ 31V)
TX : 27.20 ~ 31.00GHz
RX : 17.50 ~21.20GHz
Linear : ≥ 55.00dBW@0°@29.00GHz
Circular : ≥ 53.00dBW@0°@29.00GHz
G/T(typical) : ≥ 13.00dB/K@0°@19.00GHz@80K
크기 : 1400 x 700 x 150mm
55.12 x 27.56 x 5.91inch
무게 : ≤ 48.00kg(105.82lbs)
Rated Voltage : 24V(19V ~ 31V)

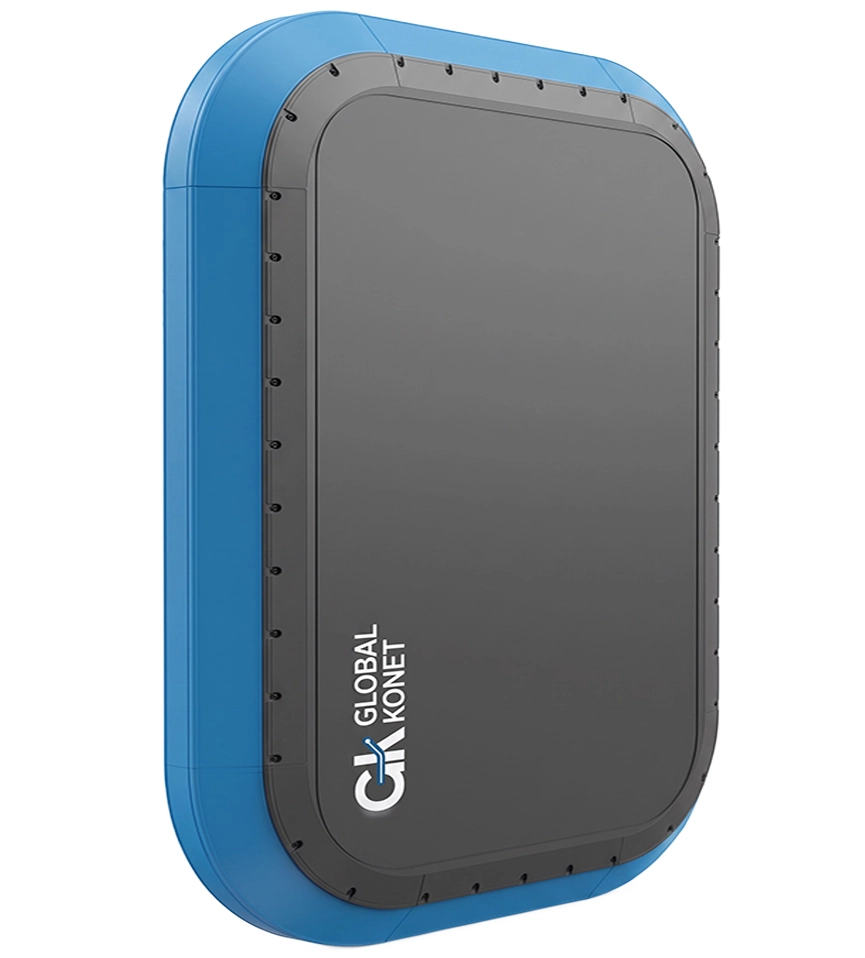

Aerospace (GA702)TX : 27.20 ~ 31.00GHz
RX : 17.50 ~21.20GHz
Linear : ≥ 55.00dBW@0°@29.00GHz
Circular : ≥ 53.00dBW@0°@29.00GHz
G/T(typical) : ≥ 13.00dB/K@0°@19.00GHz@80K
크기 : 1400 x 700 x 150mm
55.12 x 27.56 x 5.91inch
무게 : ≤ 48.00kg(105.82lbs)
Rated Voltage : 24V(19V ~ 31V)
TX : 27.50 ~ 31.00GHz
RX : 17.70 ~21.20GHz
Linear : 46.40 ≥ dBW@0°@29.00GHz
Circular : 44.20 ≥ dBW@0°@29.00GHz
G/T(typical) : ≥ 10.10dB/K@0°@19.00GHz@80K
크기 : 650 x 510 x 95mm
25.59 x 20.08 x 3.74inch
무게 : ≤ 21.00kg(46.30lbs)
Rated Voltage : 24V(19V ~ 31V)

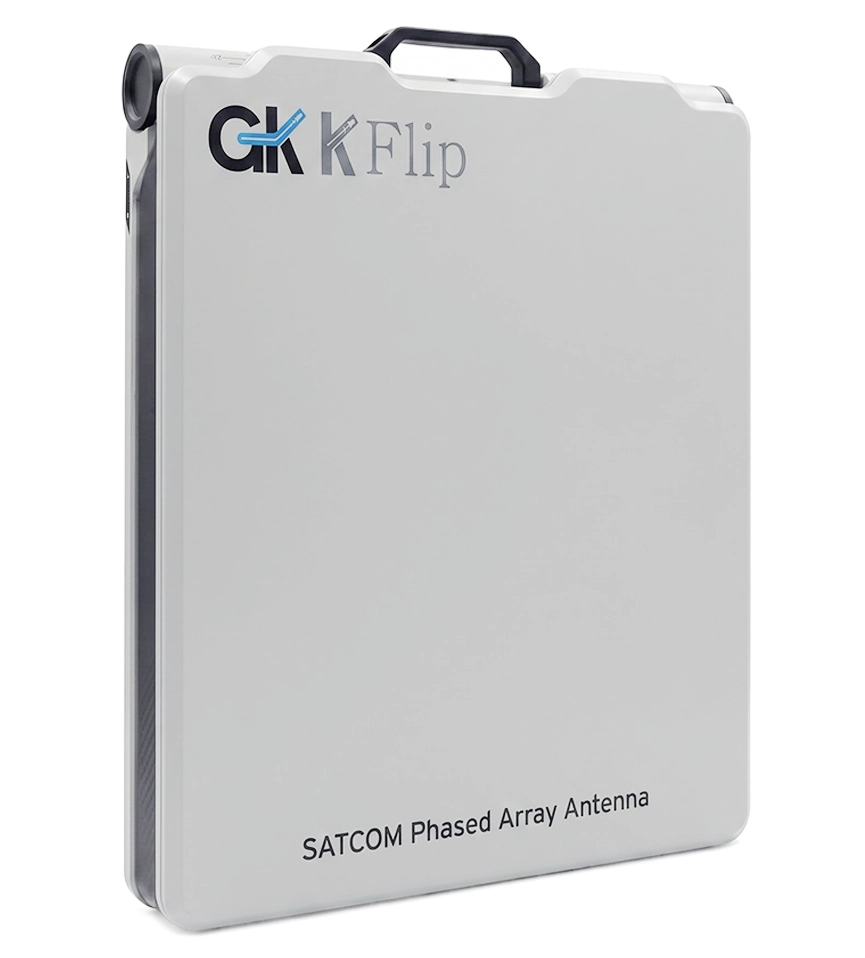

Konet K-Flip (GA330)TX : 27.50 ~ 31.00GHz
RX : 17.70 ~21.20GHz
Linear : 46.40 ≥ dBW@0°@29.00GHz
Circular : 44.20 ≥ dBW@0°@29.00GHz
G/T(typical) : ≥ 10.10dB/K@0°@19.00GHz@80K
크기 : 650 x 510 x 95mm
25.59 x 20.08 x 3.74inch
무게 : ≤ 21.00kg(46.30lbs)
Rated Voltage : 24V(19V ~ 31V)
TX : 27.50 ~ 21.20GHz
RX : 17.70 ~ 21.20GHz
Linear : ≥ 22.00dBW@0°@14.10GHz
G/T(typical) : ≥ -1.50dB/K@0°@11.70GHz@40K
크기 : 264 x 239 x 34mm
10.39 x 9.41 x 1.34inch
무게 : ≤ 2.50kg(5.51lbs)
Rated Voltage : 24V(19V ~ 31V)

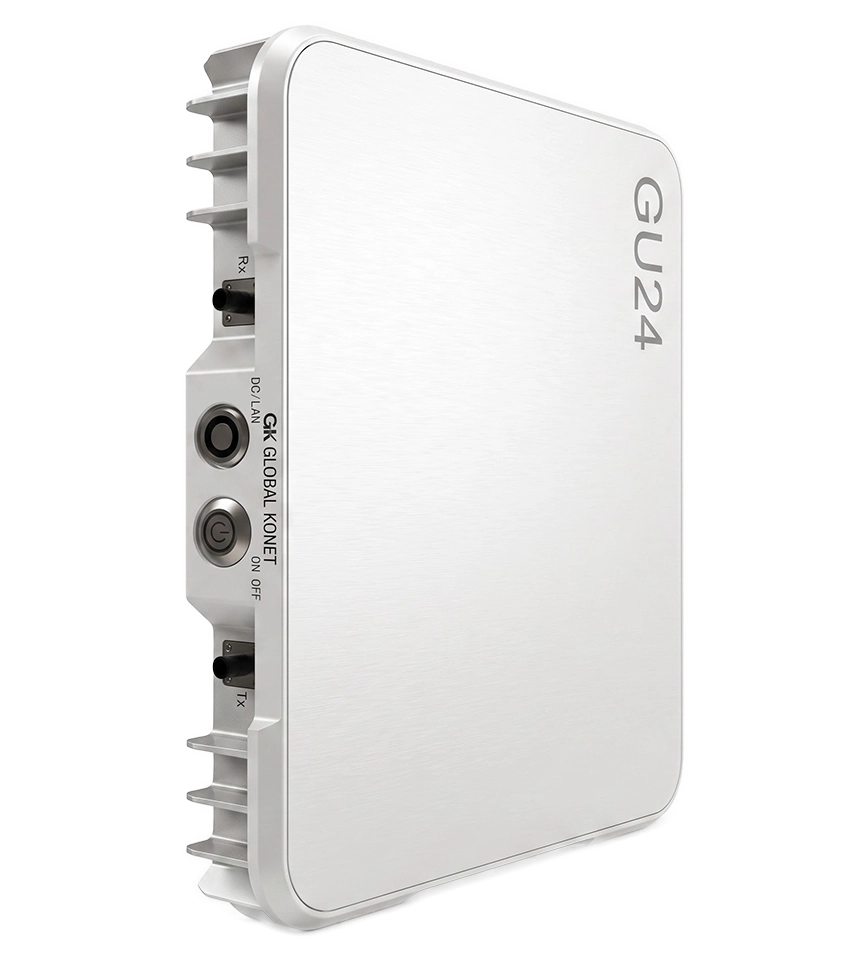

IOT GU24 (GU220)TX : 27.50 ~ 21.20GHz
RX : 17.70 ~ 21.20GHz
Linear : ≥ 22.00dBW@0°@14.10GHz
G/T(typical) : ≥ -1.50dB/K@0°@11.70GHz@40K
크기 : 264 x 239 x 34mm
10.39 x 9.41 x 1.34inch
무게 : ≤ 2.50kg(5.51lbs)
Rated Voltage : 24V(19V ~ 31V)
TX : 27.70 ~ 31.00GHz
RX : 17.70 ~ 21.20GHz
Circular : ≥ 29.00dBW@0°@29.00GHz
G/T(typical) : ≥ 3.50dB/K@0°@19.00GHz@60K
크기 : 250 x 190 x 41mm
9.84 x 7.48 x 1.61inch
무게 : ≤ 2.50kg(5.51lbs)
Rated Voltage : 24V(19V ~ 31V)

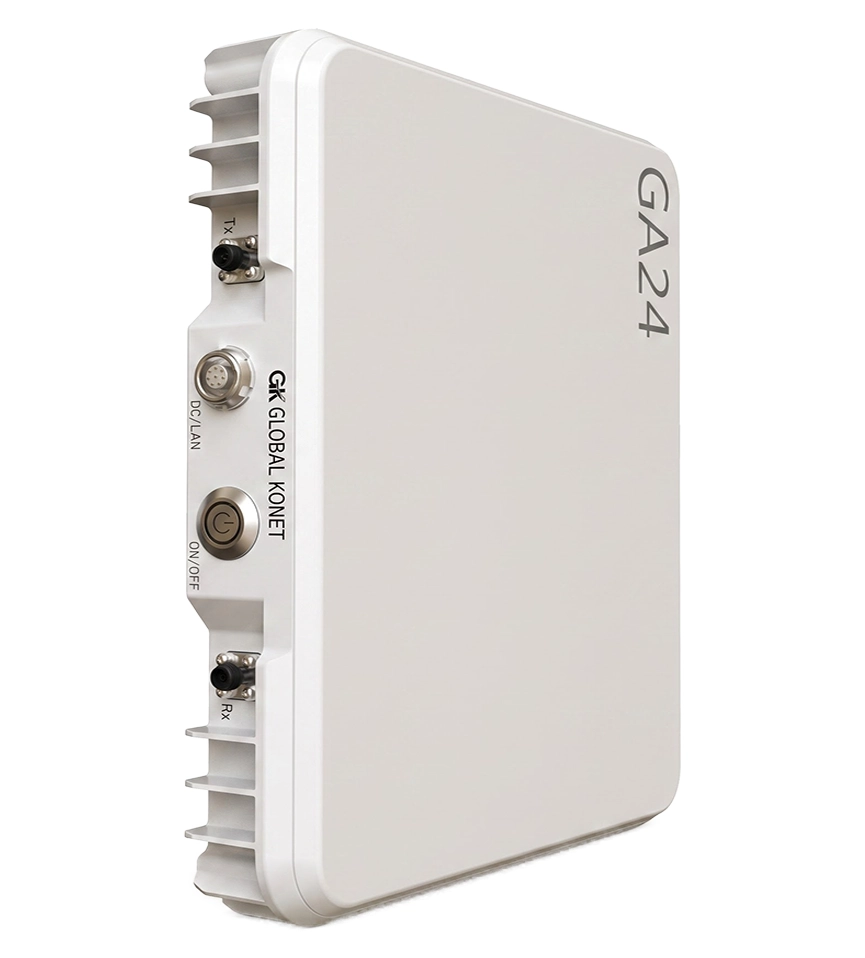

IOT GA24 (GA230)TX : 27.70 ~ 31.00GHz
RX : 17.70 ~ 21.20GHz
Circular : ≥ 29.00dBW@0°@29.00GHz
G/T(typical) : ≥ 3.50dB/K@0°@19.00GHz@60K
크기 : 250 x 190 x 41mm
9.84 x 7.48 x 1.61inch
무게 : ≤ 2.50kg(5.51lbs)
Rated Voltage : 24V(19V ~ 31V)
TX: 14.00 ~ 14.50GHz
RX : 12.25 ~ 12.75GHz
Tx Gain : ≥ 37.50dBi
Rx Gain : ≥ 36.50dBi
G/T(typical) : ≥ 12.70dB/K@0°@12.75GHz@80K
크기 : 650 x 580 x 380mm
25.60 x 22.80 x 15.00inch
무게 : ≤ 35.00 ~ 38.00kg(77.20 ~ 83.80lbs)
Rated Voltage : 24V(19V ~ 31V)

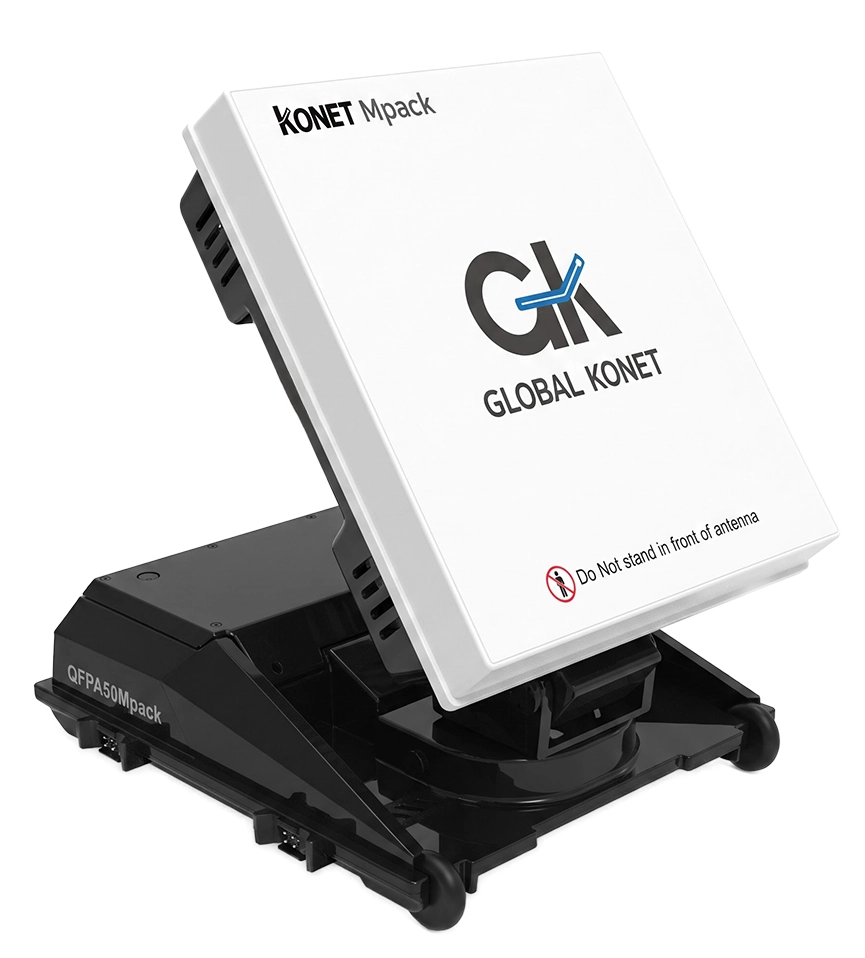

Man Pack QFPA50TX: 14.00 ~ 14.50GHz
RX : 12.25 ~ 12.75GHz
Tx Gain : ≥ 37.50dBi
Rx Gain : ≥ 36.50dBi
G/T(typical) : ≥ 12.70dB/K@0°@12.75GHz@80K
크기 : 650 x 580 x 380mm
25.60 x 22.80 x 15.00inch
무게 : ≤ 35.00 ~ 38.00kg(77.20 ~ 83.80lbs)
Rated Voltage : 24V(19V ~ 31V)

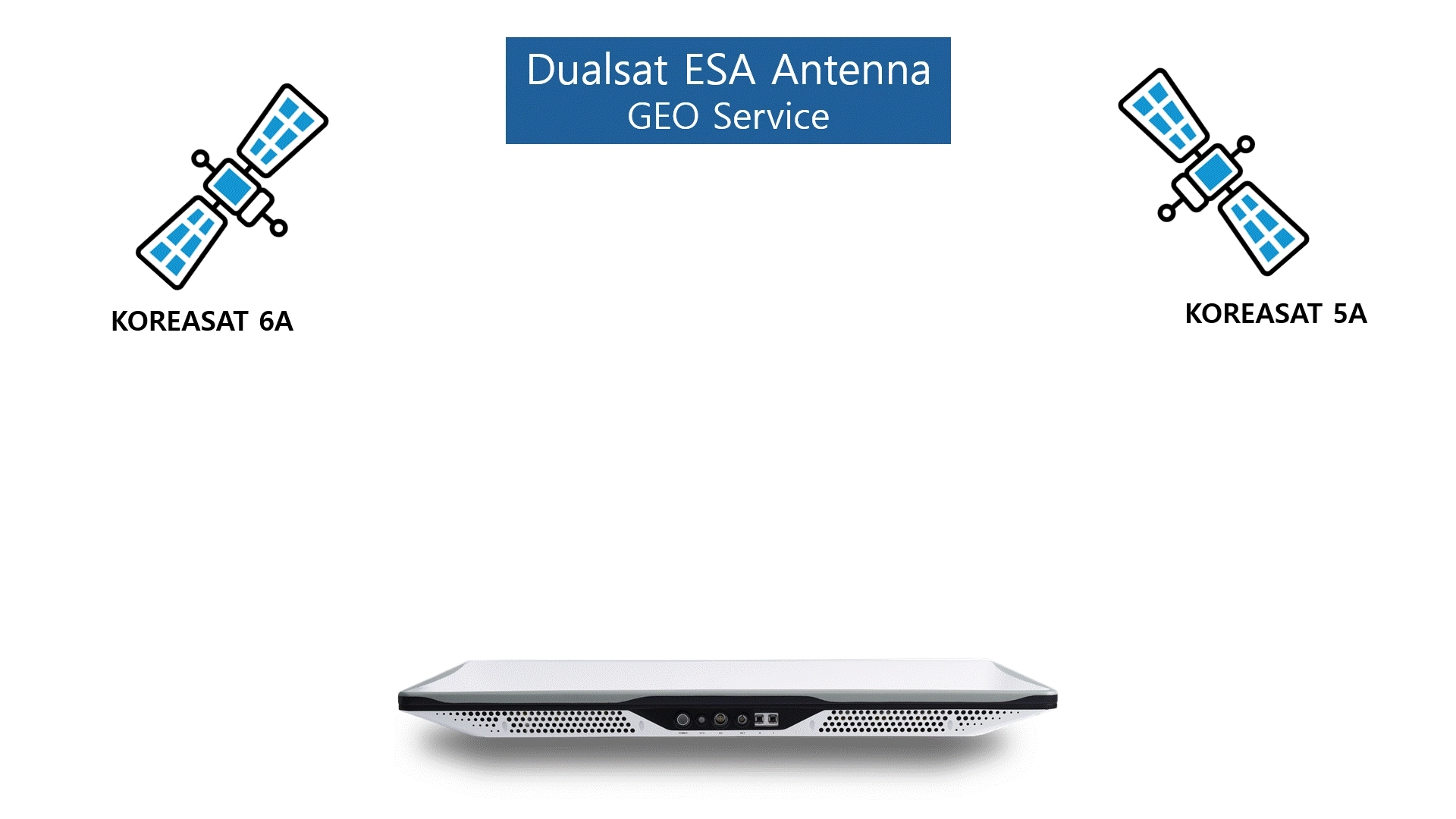

2개의 위성을 하나의 안테나로 서비스하는 두얼샛 ESA APP 소개
Dualsat ESA 서비스2개의 위성을 하나의 안테나로 서비스하는 두얼샛 ESA APP 소개
위성지구국 M&C, 2개 위성 서비스를 제공하는 Dualsat 소프트웨어, LEO, Starlink Live 위성 추적 소프트웨어
GK 개발 소프트웨어위성지구국 M&C, 2개 위성 서비스를 제공하는 Dualsat 소프트웨어, LEO, Starlink Live 위성 추적 소프트웨어
